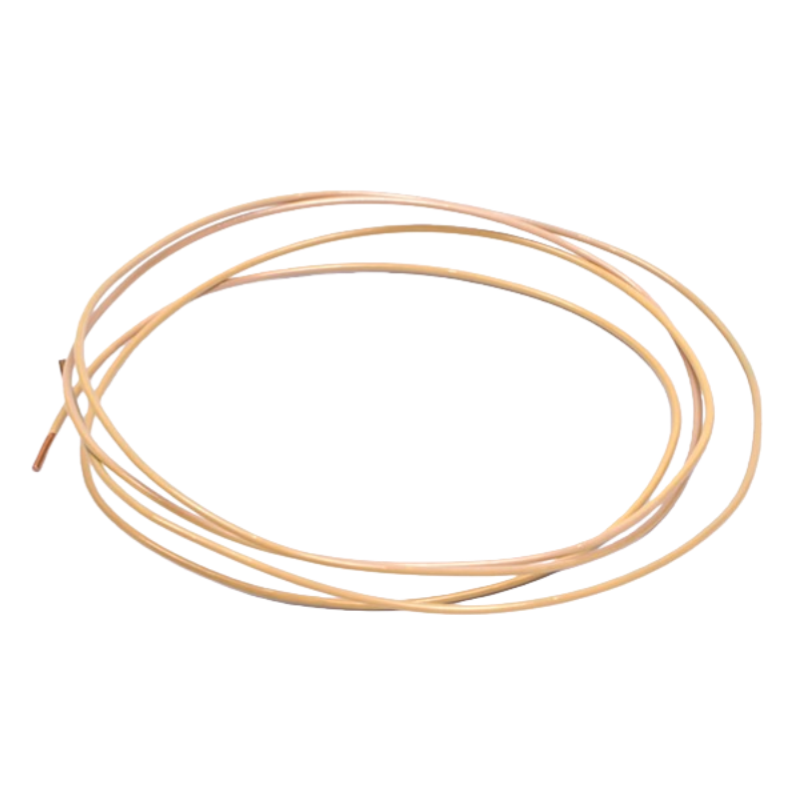

PEEK cable
PEEK (Polyether Ether Ketone) wire is a type of cable that uses a special engineering plastic as the insulation and sheathing material, serving as a critical component in the fields of electronic components and industrial control systems. Its core characteristic lies in its base material, polyether ether ketone (PEEK), which is processed through precision manufacturing to create a cable with advantages such as high-temperature resistance, chemical corrosion resistance, and high mechanical strength. This makes it suitable for demanding industrial applications, including high-temperature environments, highly corrosive media, or high-load transmission scenarios.
I. Material Properties and Structural Composition

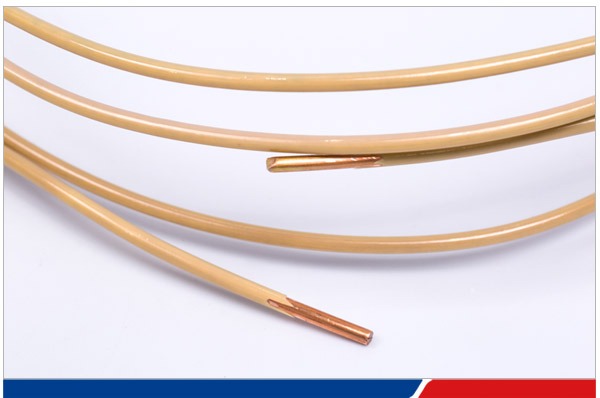

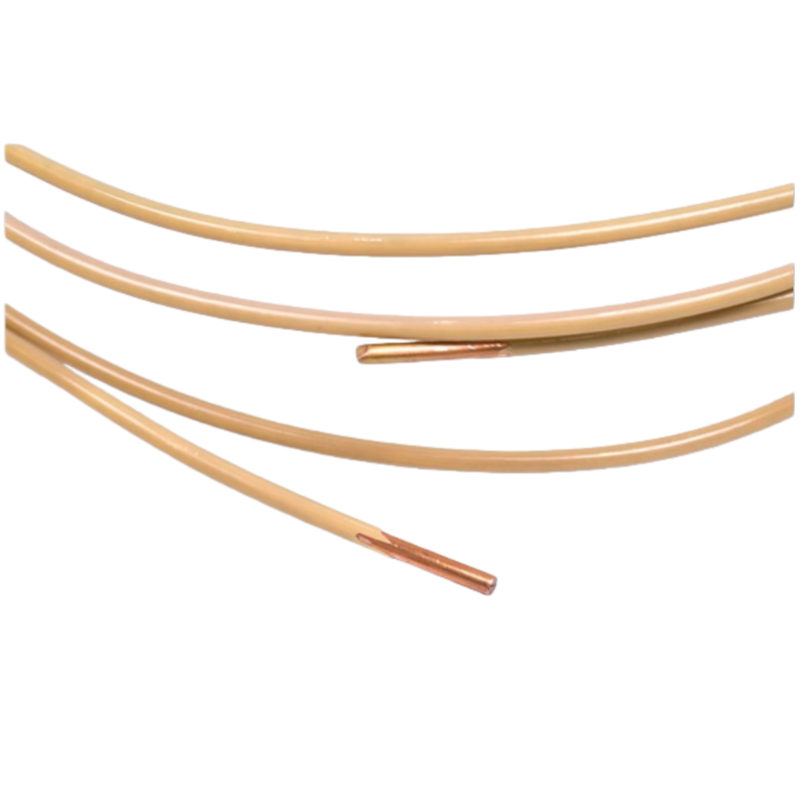

PEEK is a semi-crystalline special engineering plastic whose molecular chain structure endows the cable with unique physical and chemical properties. This material can operate stably for extended periods at 250°C, with short-term tolerance reaching 300°C. It also exhibits excellent flame retardancy (UL94 V-0 rating) and radiation resistance. The cable typically features a single-core or multi-core design, with conductors made of high-purity copper or tinned copper. The insulation and sheathing layers are formed by extruding PEEK material, with thickness customized based on specifications (e.g., 0.75 mm² conductor cross-section) to balance electrical performance and mechanical protection.
II. Application Scenarios and Technical Advantages
PEEK cables are primarily used in industries such as aerospace, petrochemicals, semiconductor manufacturing, and nuclear energy. For example, in oil drilling platforms, their high-temperature resistance allows them to withstand downhole heat. In semiconductor etching equipment, their chemical corrosion resistance protects against aggressive gases like hydrogen fluoride. Inside nuclear reactors, their radiation resistance ensures long-term stability. Compared to traditional polytetrafluoroethylene (PTFE) cables, PEEK cables offer superior abrasion resistance, cut resistance, and hydrolysis resistance. They also comply with international standards such as CE and ISO, meeting global industrial requirements.
III. Specifications and Selection Criteria
Taking a 0.75 mm² conductor cross-section as an example, this specification is suitable for low-voltage signal transmission or control circuits with rated currents below 10A. The packaging adopts a reel design for easy automated wiring, with a minimum packaging quantity of 200 meters per reel to reduce downtime caused by frequent spool changes. Key selection criteria include certification standards (e.g., CE, ISO), batch management (traceable to the original manufacturer), and after-sales service (e.g., rapid response mechanisms for cable damage). These parameters directly impact the long-term reliability of the cable in complex industrial environments.
IV. Usage Precautions and Maintenance Guidelines
During installation, excessive bending (minimum bending radius of 5 times the cable diameter) should be avoided to prevent PEEK sheathing from cracking. Storage conditions should remain dry (humidity below 60%) and shielded from direct UV exposure to prevent material aging. Regular inspections should check for issues like bulging sheaths, exposed conductors, or reduced insulation resistance (standard value >100 MΩ), with timely replacements as needed. A comprehensive after-sales service system can provide technical consultation and fault analysis, reducing lifecycle maintenance costs.
PEEK cables are specialty cables made from polyether ether ketone (PEEK), a high-performance material with excellent properties such as high-temperature resistance, corrosion resistance, and flame retardancy. They are widely used in high-end fields like military, aerospace, petrochemicals, nuclear power plants, and rail transportation.
Key Features
- High-Temperature Resistance: Long-term use at 250°C, short-term tolerance up to 260°C.
- Corrosion Resistance: Strong resistance to acids, alkalis, and organic solvents, though it may yellow in concentrated sulfuric or nitric acid.
- Flame Retardancy: Self-extinguishing, achieving UL94 V-0 rating (1.5 mm thickness) without added flame retardants.
- Insulation Performance: Excellent electrical insulation, suitable for high-demand electrical environments.
Application Fields
- Military & Aerospace: Used in aircraft components, rocket engine parts, etc.
- Petrochemicals & Nuclear Power: Resistant to corrosion and radiation, ideal for extreme environments.
- Automotive & Rail Transportation: Replaces metal parts like engine covers and transmission components.
- Medical Field: Used in sterilization equipment, chromatograph parts, etc.
