High-Performance RF Coaxial Cables: Precision Connectivity for Global Industries
In the world of high-frequency signal transmission, RF (Radio Frequency) Coaxial Cables are the critical link. Designed to carry high-frequency electrical signals with low loss and maximum protection against electromagnetic interference (EMI), our coaxial solutions are engineered for reliability in the most demanding environments.
1. Internal Structure & Engineering

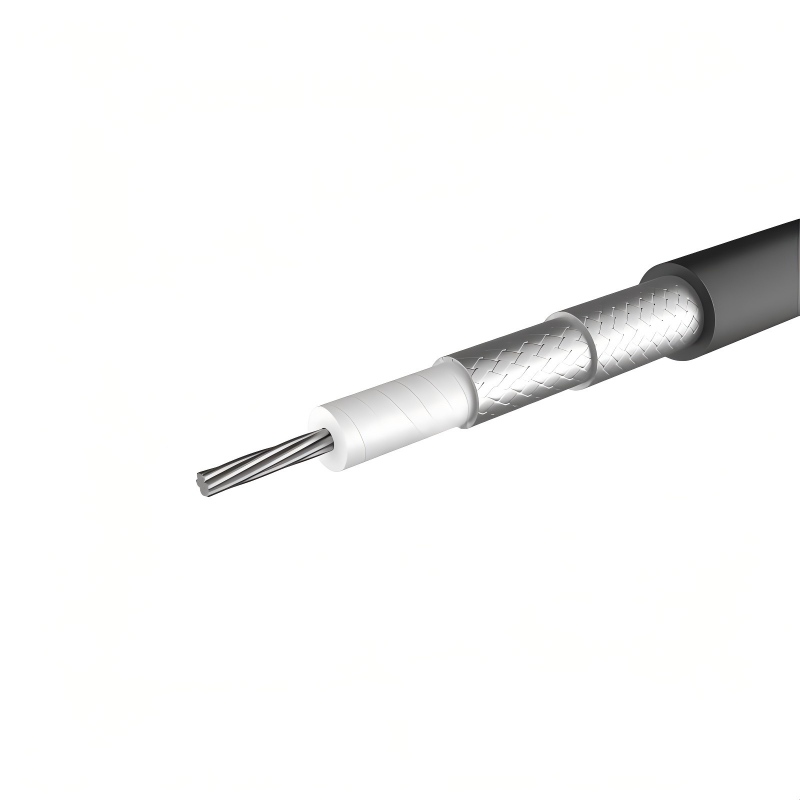

A high-quality RF Coaxial cable is more than just a wire; it is a precision-engineered four-layer transmission line. Each layer plays a vital role in maintaining signal integrity:
Center Conductor: Typically solid or stranded copper, silver-plated copper, or copper-clad steel (CCS).
Dielectric Insulator: A layer of polyethylene (PE) or PTFE that determines the cable’s impedance and velocity of propagation.
Metallic Shield: A combination of foil and braided wire to prevent signal leakage and external EMI.
Outer Jacket: Durable PVC, PE, or LSZH (Low Smoke Zero Halogen) to protect against mechanical wear and environmental factors.
2. Technical Performance Highlights
Our RF cables are manufactured to meet international standards (MIL-C-17, RG series, and LMR equivalents), ensuring:
Low Attenuation: Minimal signal loss even over long distances and high frequencies.
Precise Impedance Matching: Standard $50 \Omega$ (for wireless/telecom) and $75 \Omega$ (for video/broadcast) options available.
High Shielding Effectiveness: Superior protection in RF-dense environments.
Weather Resistance: UV-resistant and waterproof jackets for outdoor and marine applications.
3. Core Applications
RF Coaxial cables are indispensable across a wide range of high-tech sectors:
Telecommunications: 5G base stations, cellular towers, and satellite communication systems.
Aerospace & Defense: Radar systems, avionics, and secure military communication links.
Medical Equipment: High-precision signal transmission for MRI and diagnostic imaging.
Industrial Automation: Wireless data links and remote monitoring in smart factories.
Test & Measurement: Laboratory-grade cables for high-frequency testing equipment.
Technical Support & Procurement
As a leading supplier of specialized industrial cables, we provide customized RF solutions tailored to your specific frequency and environmental requirements.
🔗Explore Our RF Coaxial Product Catalog
✉️Contact Our Engineering Team
Custom Solutions Available:
From specialized connector terminations (SMA, N-Type, BNC) to custom shielding requirements for aerospace or medical applications, our team is ready to deliver. Partner with us for reliable high-frequency connectivity.
