Braided Wave Shield Sleeves: Premium EMI Protection & Mechanical Defense for Cables
In industrial automation, aerospace, automotive, and communication systems, cable safety and signal stability are critical. Braided wave shield sleeves emerge as essential components, integrating electromagnetic interference (EMI) shielding and mechanical protection to safeguard cables in harsh operating environments. These flexible, durable sleeves ensure uninterrupted signal transmission while extending cable service life, becoming a staple in high-reliability equipment.
What Are Braided Wave Shield Sleeves?

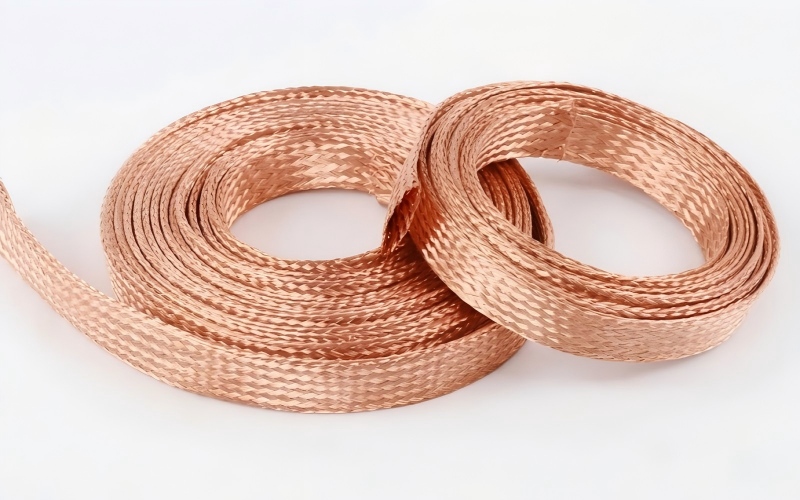

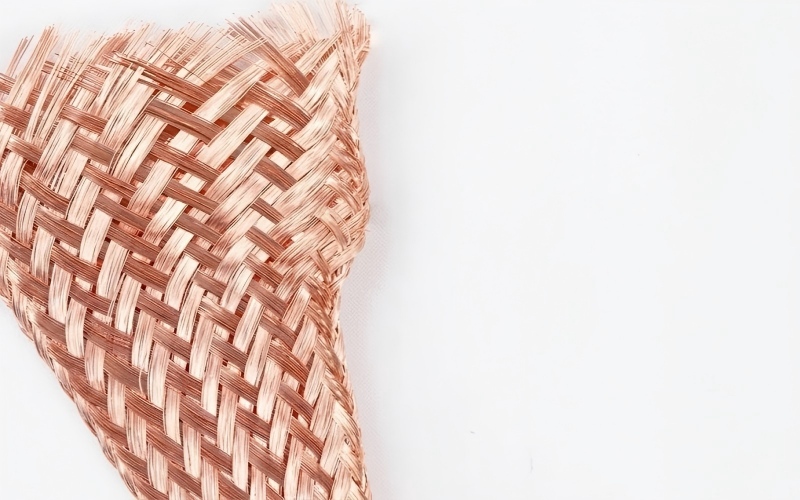

Braided wave shield sleeves are cylindrical protective components woven from high-quality metal wires, featuring a dense, flexible structure. Core materials include tinned copper, nickel-plated copper, and zinc-aluminum alloy, with optional PVC/PE coating for enhanced corrosion resistance <superscript>4. Adopting precision braiding technology (compliant with JB/T 6313.2 standards), the sleeves achieve adjustable braiding density (up to 95%) to balance shielding effectiveness and flexibility.
Their unique design enables excellent conformability to irregular cable routes, facilitating easy installation in tight spaces. The metal braid not only blocks EMI/RFI (radio frequency interference) but also resists abrasion, vibration, and minor mechanical impacts, forming a dual-protection barrier for internal cables.
Key Technical Features
Superior EMI Shielding Performance: The dense metal braid provides shielding effectiveness of 60-90dB at 10kHz-1GHz, complying with CISPR25 and IEC standards. It effectively suppresses external interference and prevents internal signal leakage, ensuring signal integrity for precision equipment <superscript>9.
Excellent Mechanical Durability: Made of high-tensile metal wires (tensile strength ≥380N/mm), the sleeves resist repeated bending and abrasion without structural damage. Coated variants offer enhanced corrosion resistance, adapting to humid, chemical-exposed environments<superscript>1.
Flexible & Customizable: Available in inner diameters from 2mm to 25mm, with customizable lengths and braiding densities. Lightweight designs (ideal for aerospace) reduce overall system weight while maintaining performance <superscript>6.
Core Application Fields
Braided wave shield sleeves are widely used across high-tech industries:
Automotive & Aerospace
In automotive ADAS systems and avionics, they protect signal cables from EMI and vibration, adhering to ISO 11452 and military standards. Lightweight variants are favored in spacecraft and aircraft for weight-saving needs <superscript>6.
Industrial Automation
Shielding cables in industrial Ethernet and machine vision systems, they ensure stable signal transmission in electrically noisy factory environments, compatible with Profinet and Ethernet/IP protocols.
Electronics & Communications
Used in precision electronic devices, communication base stations, and AI servers, they block EMI to maintain data transmission accuracy, supporting high-speed signal lines up to 224Gbps.
Our Braided Wave Shield Sleeve Solutions
We offer a full range of braided wave shield sleeves tailored to global market demands. Our product lineup includes tinned copper, nickel-plated copper, and zinc-aluminum alloy variants, with PVC/PE coating options.
All products undergo strict testing for shielding effectiveness, tensile strength, and corrosion resistance, complying with RoHS, REACH, and MIL-STD standards. OEM/ODM services are available for custom specifications, supporting on-time global delivery.
Conclusion
Braided wave shield sleeves are indispensable for protecting cables in high-reliability systems, combining EMI shielding and mechanical defense. Our premium solutions empower your products to perform stably in the most demanding environments.
Contact our team to discuss custom requirements and elevate your cable protection with our braided wave shield sleeves.
