Twinaxial Cable: The High-Speed Data Standard
Twinaxial cable, often referred to as "Twinax," is a type of communication cable similar to coaxial cable but with two inner conductors instead of one. This unique design makes it the gold standard for high-speed, short-range data transmissions in modern network environments.
1. What is a Twinaxial Cable?

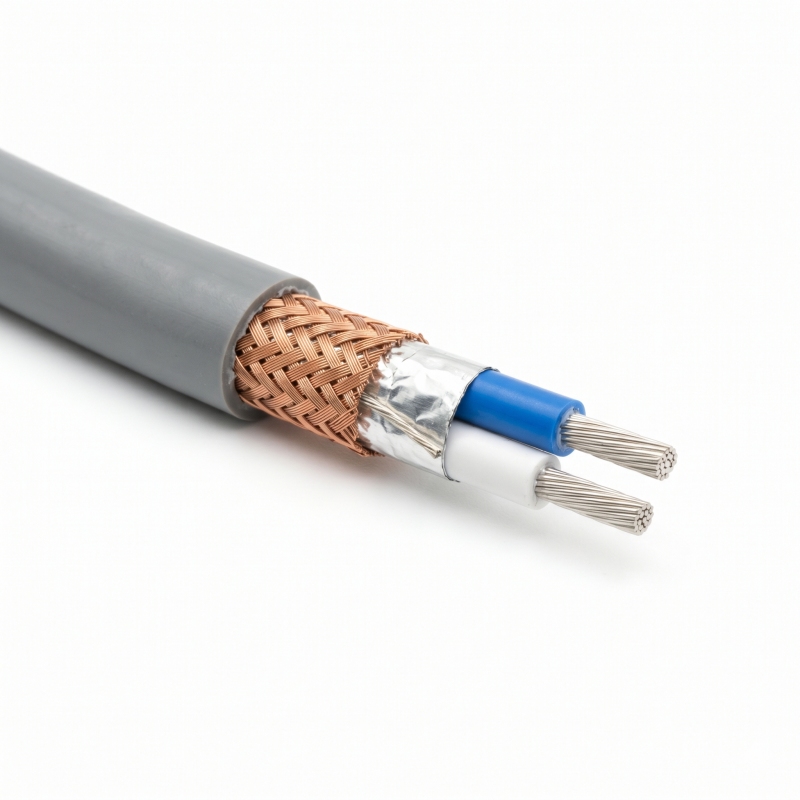

A Twinax cable consists of two insulated copper conductors twisted together, surrounded by a common braided shield and an outer jacket. This "balanced pair" design is specifically engineered to handle differential signaling, which significantly reduces noise and electromagnetic interference (EMI).
Key Specifications
Impedance: Typically $100 \Omega$ (Standard for data networking).
Signaling: Differential (Two signals of opposite polarity).
Distance: Optimized for short-reach applications (usually up to 7–15 meters).
2. Why Choose Twinax? (Key Advantages)
In the world of data centers and industrial automation, Twinax offers several distinct advantages over traditional Fiber Optic or Category (Cat6) cabling:
Cost-Effectiveness: Significantly cheaper than optical transceivers and fiber cables for short distances.
Low Latency: Because there is no need for optical-to-electrical conversion, Twinax provides ultra-low latency.
Power Efficiency: Consumes minimal power compared to Active Optical Cables (AOC).
Durability: The thick shielding provides excellent protection against external interference in "noisy" electronic environments.
3. Common Applications
Twinaxial cables are the backbone of modern high-speed connectivity, most notably used in:
SFP+ / QSFP+ Direct Attach Copper (DAC): Connecting switches to servers within the same rack.
Storage Area Networks (SAN): High-speed data transfer between storage devices.
Industrial Controls: High-integrity signaling in environments with heavy electrical noise.
Mil-Spec Communications: Specialized versions used in aerospace and defense (e.g., MIL-STD-1553).
Technical Support & Procurement
Are you looking for high-performance Twinaxial solutions tailored to your specific infrastructure? We provide a wide range of AWG sizes and shielding options to meet your project requirements.
🔗View Our Full Product Catalog
✉️Request a Custom Quote / Technical Consultation
Need a custom length or specialized connector? Our engineering team is ready to assist you with bespoke cable assemblies. Contact us today to discuss your technical specifications.
