Rays Twinaxial Cable-MlL-STD-1553B Cable
- High & low temperature resistance
- light weight
- Aging resistance
- radiation resistance
- corrosion resistance
- flame retardancy
- small outer diameter
Product Introduction：
Applied to MIL-STD-1553 transmission network, ensuring high data security and high signal integrity.
It features light weight, miniaturization, superior stability, and is convenient for the inspection of avionic equipment.

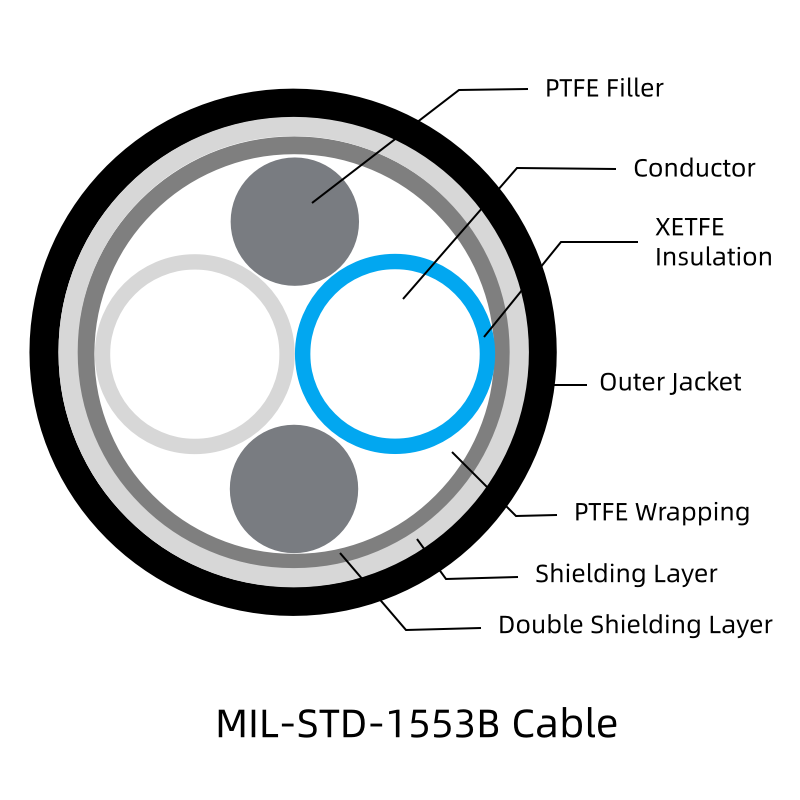

Structural Parameters:
| Model | Specification | Structural |
| HPDCF-1553B | 1×2×24A | XETFE Insulation Single-layer tinned round copper braided shield |
| HPDCF-1553B-2 | 1×2×24A | XETFE Insulation Double-layer tinned round copper braided shield |
| HPDSF-1553B | 1×2×24A | XETFE Insulation Single-layer silver-plated round copper braided shield |
| HPDSF-1553B-2 | 1×2×24A | XETFE Insulation Double-layer silver-plated round copper braided shield |
