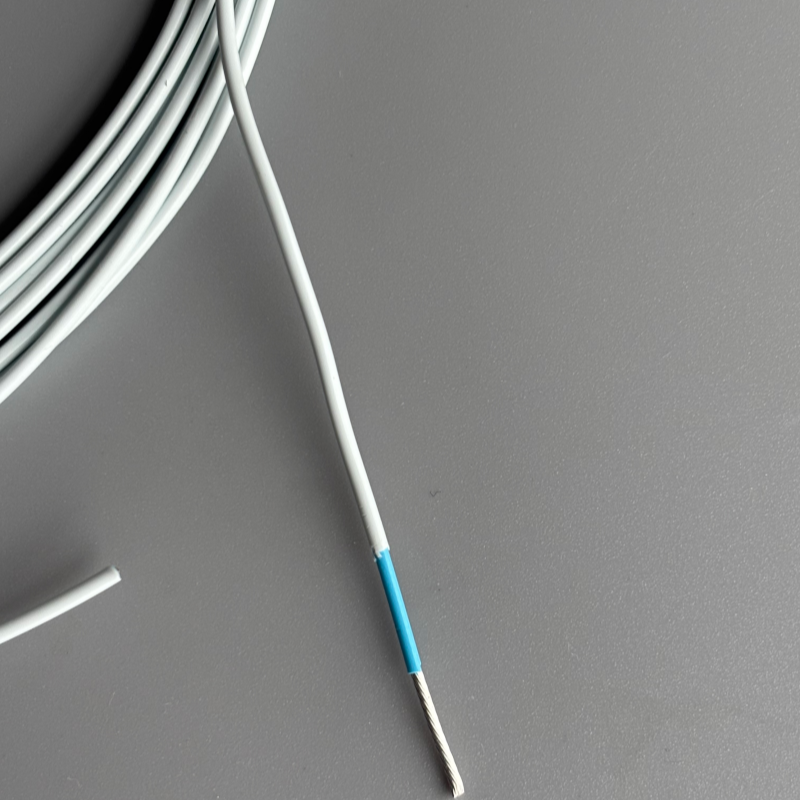

M22759 Wire: What You Actually Need to Know Before You Specify It

Let's talk about M22759 wire. If you've spent any time in aerospace or defense wiring, you've seen this designation. And if you're like most engineers, you've probably had a moment where you thought, "Wait, which slash number do I actually need?"

I've been around enough harness builds and avionics racks to tell you this upfront: M22759 is not one wire. It's a family. And if you treat it like a single commodity, you're going to have a bad time.

The Family Name Is Not the Spec

Here's the thing that trips people up. "M22759 wire" doesn't tell you much. It's like saying "I need a vehicle." Okay, great. A motorcycle? A pickup? An armored personnel carrier?

The slash number is where the real information lives. M22759/32, /33, /35 — these are different animals. Different conductors, different insulation systems, different temperature ratings. Same family name, very different performance.

I've seen procurement folks pull a generic M22759 callout from an old drawing and wonder why the replacement wire doesn't match the original. Nine times out of ten, it's because someone ignored the slash number and the full part number.

 What's Actually Inside

Let's break down the layers, because this is where the engineering decisions happen.

The conductor** is your first clue. You'll see silver-plated copper, silver-coated high-strength copper alloy, or tinned copper depending on the specification. The /32 family uses tinned copper. The /33 and /35 families step up to silver-coated high-strength copper alloy. That's not a minor detail — it affects conductivity, strength, and how the wire handles vibration and flexing.

And yes, it's stranded, not solid. Fine stranding is what lets you route these wires through tight equipment bays without fighting them every inch of the way. Published /32 data shows constructions like 7×36, 19×38, 19×36 — that's the kind of flexibility that matters when you're pulling a harness through an avionics compartment.

The insulation** is the second big decision. M22759 covers fluoropolymer-insulated single-conductor wire. Depending on the detail spec, you're looking at PTFE, ETFE, cross-linked modified ETFE, or sometimes dual-wall constructions with polyimide.

XL-ETFE is the one I see most often in modern aerospace work. Cross-linking changes how the insulation behaves under thermal and mechanical stress. It's what lets a small wire maintain a stable insulation system while dealing with elevated temperatures and the kind of handling that installation crews put it through.

Some constructions add a polyimide layer as part of a dual-wall system. That extra layer buys you more protection around the conductor without the bulk of a heavy jacket. In aerospace, where every millimeter of harness diameter and every gram of weight counts, that's a real advantage.The /32 vs. /33 Conversation

This is the comparison I end up having most often with engineers.

Both are lightweight XL-ETFE constructions. Both are 600 V. But /32 uses tinned copper and is rated at 150°C. /33 uses silver-coated high-strength copper alloy and is rated at 200°C.

That 50-degree difference is not trivial. If your application runs hot — engine-adjacent areas, high-density power distribution, anything near a heat source — that /33 rating might be the difference between a reliable system and a maintenance headache.

And /35? Also 200°C, also silver-coated high-strength copper alloy, but a normal-weight construction rather than lightweight. Sometimes you need the extra mechanical robustness that comes with a heavier build.

The point is this: don't pick a wire because it says "M22759" on the label. Pick it because you've matched the conductor, insulation, temperature rating, and construction to your actual requirements.

Shielding and Larger Constructions

Most M22759 products in this family are single-conductor wires. But some larger constructions — like certain /34 configurations — use an overall braid shield. The supplied construction uses treated aromatic polyamide braid as the protective structure.

That changes the engineering proposition. Now you've got the conductor for the electrical path, the insulation for electrical and environmental separation, and a braid adding mechanical protection and shielding around the whole assembly.

But here's my caution: shielding performance is a system-level property. You can't just specify a braided wire and assume you've solved your EMI problem. Termination, grounding, connector design, routing — all of it affects the final shielding behavior. I've seen plenty of designs where the wire was fine but the shield termination was an afterthought, and the system performance suffered for it.

Size and Weight: The Real Constraints

Aerospace wiring is often limited by available installation space, not by electrical function. That's why the dimensional range matters.

The M22759 product matrix covers roughly 0.022 inches to 0.561 inches outer diameter. Reference weight runs from about 0.91 to 150+ lbs/MFT depending on construction and conductor size.

The small end — constructions like M22759/32-30 at around 0.022 inches O.D. — is where things get interesting. In avionics racks, equipment panels, and wiring channels where dozens or hundreds of individual wires share the same path, a reduction in individual wire diameter multiplies into a significant reduction in total harness volume.

I've watched harness designers shave weight and volume by switching from a heavier construction to a lightweight XL-ETFE equivalent. When you're talking about hundreds of feet of wire in a single aircraft, those savings add up fast.

What M22759 Is Not

Let me be direct about this: M22759 wire is not automatically a high-speed data cable.

The supplied product matrix does not specify characteristic impedance or transmission rate. If your system is carrying Ethernet, high-speed serial data, RF, or any controlled-impedance signal, you need to verify the actual cable construction and electrical requirements. Don't infer them from the M22759 designation.

I've seen this mistake more than once. Someone assumes "military wire" means "data-capable wire," and then they're surprised when the signal integrity falls apart. M22759 can be an electrical interconnect or individual conductor within airborne electronic systems, but the designation itself doesn't make it a network cable.

For aircraft networks, you're looking at conductor construction, impedance, pair geometry, shielding, insertion loss, crosstalk, connector system, and the applicable network standard. M22759 becomes relevant when the wiring architecture requires a qualified aerospace wire construction around those system-level requirements.

 Where It Gets Used

Aircraft wiring and avionics.This is the classic application. The wire has to fit through narrow channels, pass near heat sources, tolerate repeated handling, and maintain its insulation system over long service periods. Lightweight fluoropolymer-insulated M22759 constructions are a natural fit for avionics equipment wiring, electrical harnesses, equipment-bay wiring, instrumentation connections, and internal electronic equipment wiring.

Airborne data and avionics networks.** As I said above, M22759 can be part of the architecture, but the network requirements drive the selection, not the other way around.

Missile guidance and defense electronics.** Severe constraints on volume, durability, temperature exposure, and packaging. M22759-family wires can be considered for internal wiring and interconnection where the applicable construction has been qualified. Power distribution inside electronic modules, control-system interconnections, sensor and instrumentation wiring, actuator-related connections — these are all realistic applications. But the specific wire qualification must be checked against the platform's procurement specification.

Ground, naval, and vehicle electronics.** Same construction logic applies. Restricted installation space, mechanical abrasion, cut-through risk, elevated temperature, high wiring density, strict weight requirements — the appropriate M22759 construction can provide a fluoropolymer-insulated single-conductor solution when those constraints are part of the wiring specification.

The MIL-W-22759 vs. SAE AS22759 Question

This comes up during procurement all the time. MIL-W-22759 is the older military designation you'll see on legacy drawings and in old catalogs. DLA records show that individual MIL-W-22759 detail specifications were canceled and superseded by corresponding SAE AS22759 specifications.

Today, SAE AS22759 is the relevant technical standard family. SAE's current AS22759E listing describes fluoropolymer-insulated single-conductor electrical wire using copper or copper-alloy conductors with specified coatings and insulation systems.

The practical rule for procurement is simple: don't purchase from the words "M22759 wire" alone. Verify the complete slash specification, conductor, AWG, temperature rating, voltage rating, construction, color code, qualification, and current drawing or specification revision.

I've seen too many replacement orders go wrong because someone matched the family name but not the detail specification. The wire showed up, it looked right, but it wasn't qualified for the application. That's an expensive mistake.

 My Selection Checklist

Before I approve an M22759 wire for an aerospace or defense application, I walk through this list:

Specification sheet — Confirm the exact slash number.

Conductor material — Silver-plated copper, silver-coated copper alloy, or tinned copper.

Conductor size and stranding — Verify AWG and strand construction.

Temperature rating — Confirm the actual operating range, not the family maximum.

Voltage rating — Confirm the required 600 V rating for the selected construction.

Insulation system — Check PTFE, XL-ETFE, dual-wall, PI, or other specified construction.

Outer diameter — Check the actual maximum O.D. against harness-space limitations.- **Weight** — Check lbs/MFT or kg/km when total harness mass matters.

Mechanical requirements — Review abrasion, cut-through, flexibility, arc tracking, and flame-related requirements.

Shielding— Confirm whether an overall braid is required and how it will be terminated.

Qualification — Verify the applicable current SAE specification and qualification status.

System-level electrical requirements — For data or RF applications, independently verify impedance, attenuation, crosstalk, shielding, and transmission requirements.

The Bottom Line

The value of the M22759 / MIL-W-22759 wire family isn't one single material or one headline temperature number. It's the ability to select a specific conductor and fluoropolymer insulation construction for a demanding wiring environment.

For compact aerospace harnesses, the engineering trade-off is usually between diameter, weight, temperature capability, mechanical protection, conductor strength, and installation requirements. M22759/32 gives you the lightweight XL-ETFE approach with tinned copper at 150°C. M22759/33 and /35 move to silver-coated high-strength copper alloy and 200°C-class XL-ETFE constructions. Other detail specifications introduce different conductor, insulation, weight, and shielding combinations.

That's the level at which an M22759 specification should be evaluated. Not simply as "military wire," but as a defined material and construction system matched to the actual aircraft, defense, vehicle, or electronic equipment wiring requirement.

Get the slash number right. Match the conductor and insulation to your environment. Verify the qualification. And don't assume the family name tells you everything you need to know.

That's how you avoid surprises — and in aerospace and defense wiring, surprises are the last thing you want.
