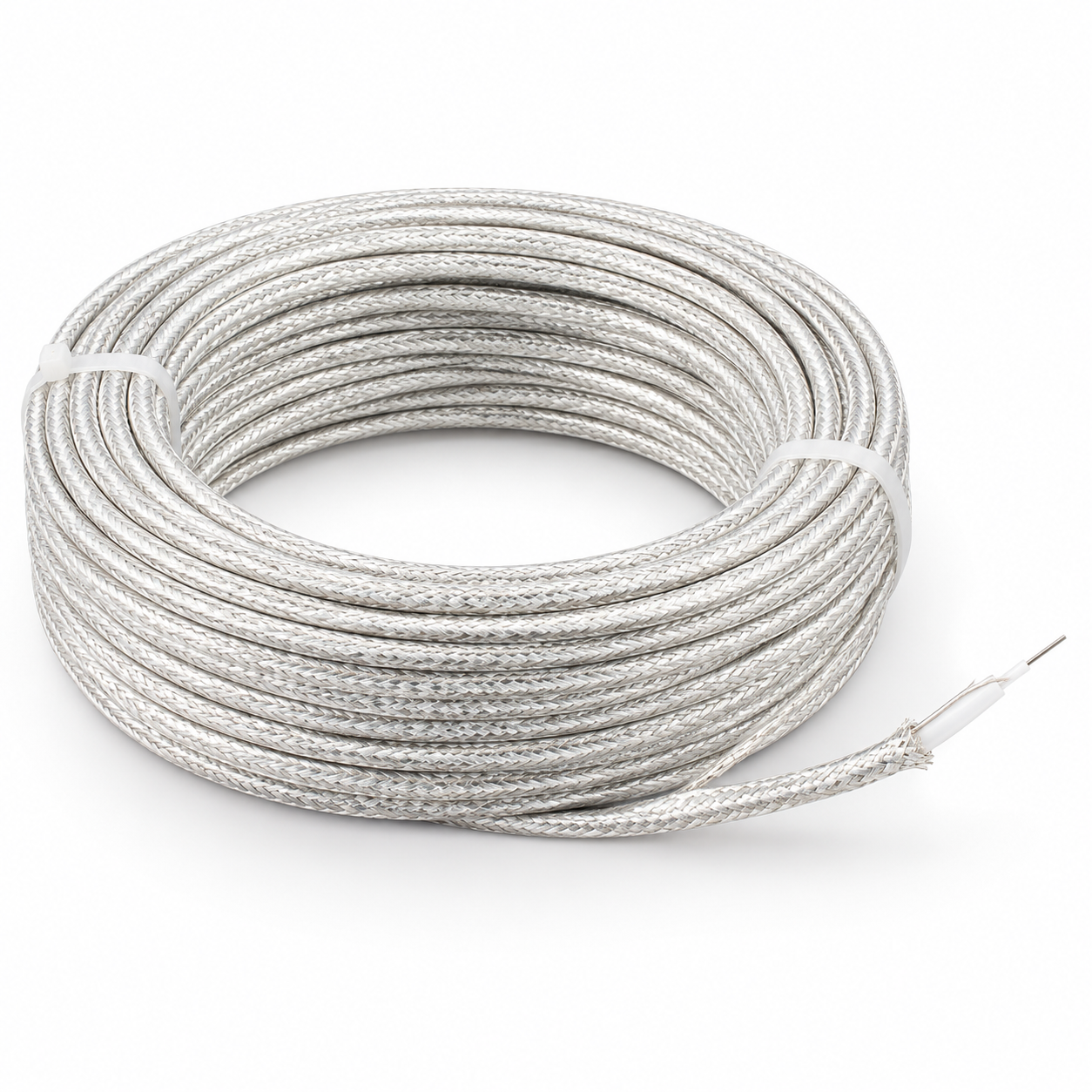

SFCJ-50 Series Phase-Stable Cable: Low-Loss Coaxial Cable for High-Frequency RF Transmission
Let’s be real for a second: every RF engineer has a war story about a cable that ruined a perfectly good test setup. Mine was early in my career, building a rotating antenna test stand. I grabbed a standard flexible coax off the lab shelf to save a little time and money, and for two weeks we chased unexplainable phase drift every time we slewed the antenna. We recalibrated the VNA three times, reworked the antenna feed, swapped out the receiver—everything but the cable. When we finally swapped in a proper phase-stable cable? The problem vanished overnight.
That’s the dirty little secret of high-frequency RF systems with moving parts: the cable isn’t just a passive wire. It’s an active component of the transmission line. Bend it, twist it, move it even a little, and every tiny physical shift shows up in your RF performance. Most flexible coax is built to tolerate bending. The SFCJ-50 Series Phase-Stable Cable is built to maintain performance through bending. That’s a huge difference, and it’s the reason this cable earns its keep in any dynamic RF setup.
Static Coax and Moving Systems Are a Bad Match
A conventional coaxial cable works perfectly fine when it’s strapped down in a rack and never touched. The internal geometry stays consistent, impedance holds steady, and your RF behavior is predictable. But mount that same cable on a positioning stage, a radar gimbal, or a mobile antenna array? All bets are off.
Bending shifts the spacing between the inner conductor, dielectric, and outer shield. Twisting warps the entire layered structure. Repeated movement fatigues conductors, opens gaps in the shield, and introduces mechanical stress that degrades performance over time. For high-frequency test gear, phased arrays, and radar systems, those tiny physical changes turn into real problems: inconsistent phase readings, higher insertion loss, VSWR spikes, and measurement errors you can’t calibrate out because they change with every movement.
That’s why the SFCJ-50 is designed as a phase-stable cable first, and a flexible coax second. The whole point is that mechanical movement doesn’t derail your RF performance. Let’s break down what’s inside, and why each design call matters from real-world field experience.
Under the Jacket: The Engineering That Makes Phase Stability Real
The SFCJ-50 family (covering SFCJ-50-3-51, SFCJ-50-5-51, SFCJ-50-7-51, and the larger SFCJ-50-9) is built around four core design choices. None are flashy on a datasheet, but they add up to a cable that actually delivers in dynamic applications.
Stranded Silver-Plated Inner Conductor: Flexibility + Low Loss at GHz Frequencies
The inner conductor uses stranded, silver-plated copper instead of a single solid wire—and there are very deliberate reasons for that, both mechanical and electrical.
Mechanically, stranding is non-negotiable for repeated movement. I’ve seen solid-conductor coax crack right at the connector after just a few hundred bend cycles on test equipment. Fatigue sets in fast when you’re constantly repositioning. Stranded wire flexes cleanly, handles repeated bending far better, and delivers way longer service life in dynamic setups.
Electrically, silver plating is made for high-frequency RF. Thanks to the skin effect, at GHz frequencies most of your signal travels on the outer surface of the conductor. Silver has excellent conductivity right at that surface layer, which translates to lower insertion loss and more consistent performance across the full frequency band.
The series comes in four conductor sizes, each tuned for a different balance of form factor, frequency, and durability:
1.14 mm (SFCJ-50-3): Compact footprint, rated up to 18 GHz
1.82 mm (SFCJ-50-5): Mid-size gauge, still 18 GHz, with extra mechanical robustness
2.65 mm (SFCJ-50-7): Larger build, rated up to 12 GHz, for higher power or added margin
3.35 mm (SFCJ-50-9): Heavy-duty size, rated up to 10 GHz, for high-stress mechanical environments
Quick industry tip: don’t default to the highest frequency option just because it’s there. If your system tops out at 8 GHz, the SFCJ-50-7 will give you better durability and lower DC resistance without sacrificing an ounce of RF performance. Match the cable to your real needs, not the maximum number on the spec sheet.
Dual Braided Shielding: High Isolation That Stays Flexible
Shielding is where a lot of budget flexible coax cuts corners. A single thin braid might be fine for a static lab bench, but flex it around and gaps open up—suddenly your shielding effectiveness drops, EMI leaks in, and your signal radiates out.
The SFCJ-50 uses two layers of silver-plated copper braid, delivering ≥80 dB of shielding effectiveness at 1 GHz. That’s a big deal for two reasons:
It keeps external noise out. Route this near motors, power supplies, or radar transmitters, and you won’t get garbage coupling into your sensitive RF path.
It keeps your signal in. For EMC compliance—especially in defense or aerospace adjacent systems—containing radiated emissions is just as critical as rejecting outside interference.
And because it’s braided (not a rigid tubular shield), it flexes with the cable without cracking or losing coverage. I’ve worked with solid tubular shielded cables before, and they’re great for fixed runs—but bend them too tight and they fracture, rendering the shield useless. Braided construction hits the sweet spot between flexibility and consistent shielding.
TPU Jacket + Flat-Braid Build: Built for Twisting, Not Just Bending
Most flexible coax is only designed to handle bending. But if you’ve ever mounted a cable to a rotating joint or a positioning stage, you know torsion is the silent killer. Excessive twist transfers stress straight to connector solder joints, causes unpredictable phase drift, and can even delaminate the cable layers over time.
The SFCJ-50 uses a flat-braid construction engineered for solid torsional resistance, paired with a tough, flexible TPU (thermoplastic polyurethane) jacket. TPU is the sweet spot here: it’s far more abrasion-resistant than PVC, stays flexible across temperature extremes, and doesn’t turn stiff and brittle in cold environments.
Practically speaking, this means the cable handles both bending and twisting without dumping all that mechanical stress into your connectors. For moving mechanisms, that’s a huge reliability win. I’ve seen setups where standard coax would fail connector joints every few months; a well-built phase-stable cable with good torsional resistance can run for years without issues.
Why 50 Ω Impedance Is About More Than Checking a Box
If you work in RF, you know 50 Ω is the de facto standard for most microwave systems, test equipment, and antennas. But it’s not just an arbitrary number—impedance control is make-or-break at high frequencies.
At DC and low frequencies, you mostly care about conductor resistance. At GHz frequencies, the cable stops being a wire and becomes a transmission line. Any impedance mismatch between the source, cable, connector, and load creates reflections. Those reflections drive up VSWR, reduce power transfer, and distort your signal. And the higher you go in frequency, the more even tiny geometric changes in the cable throw impedance off.
The SFCJ-50 series is tightly controlled for 50 Ω characteristic impedance, with 83% velocity of propagation and 87 pF/m capacitance. That consistency is exactly what you need for predictable system performance.
One word of advice from experience: impedance matching is a system problem. The best cable in the world won’t save you from a poorly crimped connector or a bad PCB launch. Always evaluate the whole transmission path, not just the cable itself.
Phase Stability: The Feature That Actually Matters
Let’s talk about the one feature that makes this a phase-stable cable, not just a flexible one.
For a static cable, electrical length and phase are set-it-and-forget-it parameters. For a moving cable, phase shifts with every bend, every twist, every vibration. If you’re doing precision RF measurements, that phase drift becomes measurement error—you can’t trust your readings if the cable’s electrical length changes every time you move it. If you’re using it in a phased array or radar system, phase errors can throw off your beam steering entirely.
The SFCJ-50 is built to minimize those changes. The stranded conductor, consistent dielectric, and braided shield all work together to keep the physical geometry (and therefore the electrical length) as stable as possible, even when the cable is flexing. No flexible cable has zero phase change with bending—that’s physically impossible—but the delta is drastically smaller than what you get with standard flexible coax.
This is the part that’s hardest to quantify on a datasheet, but easiest to feel in practice. If you’ve ever fought with drifting test results that you can’t explain, you already know how valuable consistent phase is.
Built to Survive Real-World Environments
Lab-grade coax is great for the bench, but most real RF systems don’t live in climate-controlled clean rooms. The SFCJ-50 is rated for -55°C to +85°C operation, which covers most outdoor, industrial, and equipment-internal applications. It won’t go brittle and crack in cold weather, and it won’t soften and degrade at elevated temperatures.
Minimum bend radius ranges from 50 mm to 130 mm depending on model, which is tight enough for most compact routing scenarios. One quick engineering note: always respect the minimum bend radius. Even the best phase-stable cable will drift in phase and degrade faster if you bend it tighter than it’s designed for. Good routing practice is still part of good system performance.
Where This Cable Earns Its Keep
This isn’t a cable for your home WiFi or a static server rack. It’s built for dynamic, demanding RF applications where consistency matters. From my experience, these are the use cases where it really shines:
RF Test and Measurement Equipment: If you have test cables that get plugged, unplugged, and repositioned constantly, phase stability directly impacts measurement accuracy. The SFCJ-50 makes a solid low-loss RF test cable for setups where you need repeatable results, even with movement.
Outdoor Mobile RF Systems: Antenna positioners, rotating radar feeds, mobile tracking systems—these all need cables that move with the hardware. The TPU jacket, dual shielding, and phase-stable design make it a great fit for outdoor mobile signal paths.
Microwave Signal Transmission: The SFCJ-50-3 and -5 models support up to 18 GHz, so they work well for high-frequency microwave links where low loss and consistent performance are critical.
Moving Instrumentation Interconnects: Anywhere you have RF instruments connected to moving stages or robotic positioning systems, rigid coax won’t work. This cable gives you the flexibility you need without sacrificing RF performance.
Phase-Stable Cable vs. Standard Flexible Coax: What’s the Real Difference?
I get asked this all the time: “Can’t I just use a regular flexible coax and save money?” The short answer is: only if you don’t care about performance consistency when the cable moves.
Standard flexible coax is designed to tolerate bending. Phase-stable coax is designed to maintain RF performance through bending and twisting. When you’re comparing options, don’t just look at attenuation and frequency rating. Ask about:
Phase stability under bending
Phase stability under torsion
Actual shielding effectiveness (not just “shielded”)
Minimum bend radius
Flex life (how many bend cycles before failure)
Operating temperature range
A lot of budget cables skip those specs entirely, because they’re not built for dynamic use. The SFCJ-50 is engineered around that full set of requirements, not just the headline numbers.
Picking the Right SFCJ-50 Model
Don’t just default to the smallest or largest size. Ask yourself these questions first:
What’s your maximum operating frequency? Match it to the cable’s rating—no need to overbuy.
How much power are you running? Larger conductors handle more power.
How tight is your routing space? Smaller diameters fit in tighter spots.
How much bending and twisting will the cable see? Heavier duty = larger gauge.
What’s your temperature range? All models cover -55 to +85°C, but verify for your extremes.
Wrapping Up
At the end of the day, the SFCJ-50 Series doesn’t wow you with flashy marketing buzzwords. What it does is solve a very specific, very frustrating problem that every RF engineer has run into: keeping your RF signal consistent when the cable won’t stay still.
It combines stranded silver-plated conductors for low loss and flexibility, dual braided shielding for solid isolation, a TPU jacket for durability and torsional resistance, and tight 50 Ω impedance control—all built around the core goal of phase stability under movement. With options covering up to 18 GHz and a range of sizes, there’s a configuration for most dynamic RF applications.
If you’ve been fighting with drifting phase, inconsistent test results, or cables that fail prematurely on moving equipment, this is the kind of purpose-built cable that’s worth the investment. In RF systems, the cheapest cable is the one that doesn’t cause weeks of troubleshooting and unexpected downtime. And when it comes to moving high-frequency signals, stable performance always pays for itself.
