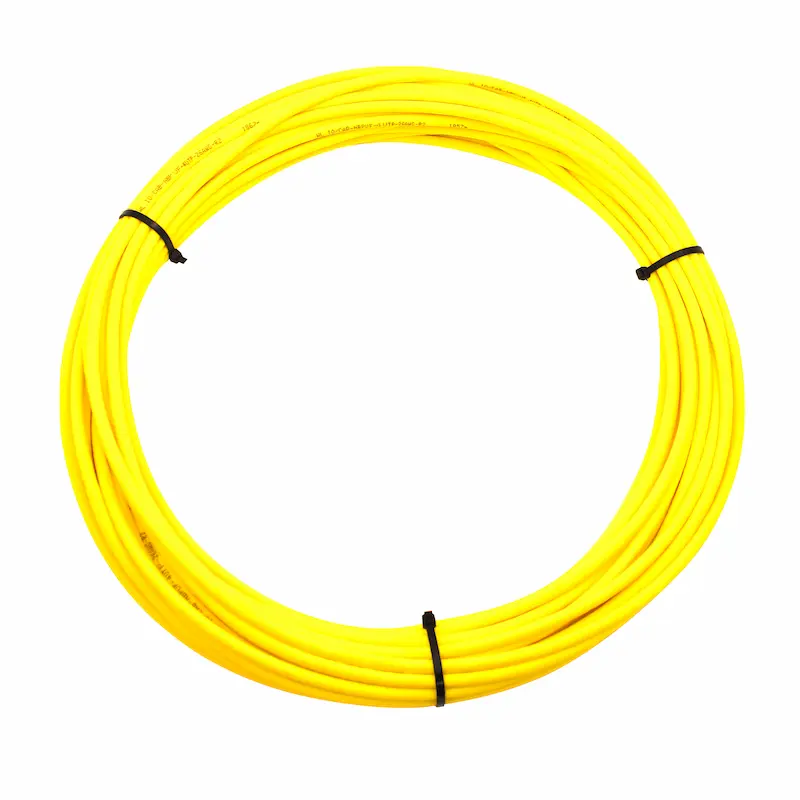

What is Optical-Electrical Composite Cable?
An optical-electrical composite cable (OECC), often referred to as a hybrid fiber-copper cable or optical power composite cable, is an integrated cable design that combines optical fiber units and electrical power conductors within a single protective assembly. This dual-function cable enables simultaneous transmission of high-speed optical signals and electrical power over a common physical pathway, eliminating the need for separate fiber optic and power cable installations. Originally developed to address the growing demand for connectivity in remote and infrastructure-constrained environments, optical-electrical composite cables have evolved into a cornerstone technology for modern communication networks, smart grid systems, and converged broadband applications.
Structural Design
The architecture of an optical-electrical composite cable is a carefully engineered balance of optical, electrical, and mechanical considerations:
Optical Fiber Core: The optical portion typically comprises single-mode or multi-mode fibers arranged in loose-tube buffer structures. Each fiber tube is filled with water-blocking gel or dry water-blocking materials to prevent moisture ingress. The fibers are responsible for high-bandwidth digital data transmission, supporting protocols from GPON and 10G-EPON to 100G Ethernet links.
Electrical Conductors: Copper or aluminum conductors, ranging in cross-section from 0.5 mm² to 10 mm² or more, are insulated with XLPE (cross-linked polyethylene) or PVC compounds. These conductors deliver AC or DC power to remote devices, including 5G base stations, fiber-to-the-home (FTTH) distribution points, surveillance cameras, and sensor networks. The choice of conductor material and gauge is determined by the required voltage level, current capacity, and permissible voltage drop over the cable run.
Separation and Shielding Layers: To minimize electromagnetic interference (EMI) between the power and optical sections, the cable incorporates metallic or semi-conductive separation layers. In higher-grade designs, the conductors are individually shielded with aluminum foil or braided wire shields, which also provide mechanical protection.
Strength and Support Members: Central strength members made of FRP (fiber-reinforced plastic) rods, steel wires, or aramid yarns provide tensile support and maintain cable geometry. Dielectric (non-metallic) designs are available for environments where lightning protection or EMI isolation is critical.
Outer Sheath: The completed core is wrapped with water-blocking tape and extruded with an outer jacket. Material selection follows the deployment environment: LSZH (low-smoke zero-halogen) compounds for indoor and confined-space installations, PE (polyethylene) for outdoor and underground use, and specialized flame-retardant compounds for tunnel or riser applications. Optional armoring — corrugated steel tape or steel wire — is added for direct burial and rodent-infested areas.
Key Technical Parameters
Optical-electrical composite cables are specified by a comprehensive set of performance metrics:
Fiber Count: From 2 to 288 fibers, accommodating current bandwidth needs and future capacity upgrades.
Voltage Rating: Typically 300/500 V for FTTH applications, up to 1 kV and beyond for smart-grid and industrial deployments.
Current Capacity: Determined by conductor size, ambient temperature, and installation method; typical ratings range from 10 A to 100 A per conductor pair.
Attenuation: ≤0.36 dB/km at 1310 nm and ≤0.22 dB/km at 1550 nm for single-mode fibers.
Operating Temperature: −40°C to +70°C for standard outdoor cables; extended-range variants cover −60°C to +90°C.
Tensile Strength: 1,000 N to 4,000 N depending on construction, with self-supporting aerial versions rated higher.
Flame Retardancy: Meets IEC 60332-1/3 and UL 1581 vertical flame test requirements for indoor use.
Primary Application Domains
Fiber-to-the-Home (FTTH) and FTTx Networks: The most prominent application of optical-electrical composite cables is in broadband access networks. By carrying both fiber and power in one cable, network operators can supply optical network units (ONUs) at subscriber premises without relying on a separate, sometimes unavailable, local power source. This "one-cable solution" dramatically simplifies trenching, ducting, and permitting processes, accelerating network rollout and reducing civil works costs by up to 30%.
5G and Mobile Base Stations: Small-cell 5G deployments demand both high-bandwidth backhaul and reliable power at antenna sites. Optical-electrical composite cables provide an elegant answer: a single riser cable delivers fronthaul/backhaul fiber links and 48 V DC power to remote radio units (RRUs), reducing tower loading and installation time compared to separate fiber and power cables.
Smart Grid and Power Distribution: In smart grid infrastructure, optical-electrical composite cables are deployed for substation-to-substation communications, distribution automation, and condition monitoring. The fiber enables SCADA telemetry and protection signaling, while the conductors supply power to sensors, controllers, and communication gear at remote field locations. These cables are also integrated into overhead power lines using specialized self-supporting (ADSS-like) constructions.
Security and Surveillance Systems: Large-scale video surveillance networks — city safety projects, highway monitoring, and industrial plants — use optical-electrical composite cables to power IP cameras and backhaul high-definition video simultaneously. This eliminates the need for distributed power injection points and simplifies cable management in complex installations.
Industrial and Mining Operations: Harsh industrial environments, including mines, tunnels, and petrochemical plants, benefit from ruggedized composite cables with enhanced armor, high-temperature jackets, and explosion-proof certifications. These cables power automation equipment while carrying real-time process control data over fiber.
Advantages Over Conventional Approaches
The value proposition of optical-electrical composite cables centers on several distinct advantages:
Single-Pull Installation: One cable replaces two or more separate runs, halving trenching requirements and substantially reducing labor and material costs.
Space Efficiency: In congested ducts, cable trays, and riser shafts, composite cables occupy roughly half the volume of equivalent separate cables.
Reduced Failure Points: Fewer physical cable runs mean fewer connectors, joints, and potential failure locations, improving overall network reliability.
Cost-Effective Power Delivery: Centralized power feeding via the embedded conductors reduces the number of independent power distribution points and associated infrastructure.
Future-Proofing: Higher fiber counts embedded in the composite structure allow network operators to scale bandwidth without re-cabling.
Simplified O&M: Maintenance crews work with a single cable type, simplifying spare parts management and troubleshooting procedures.
Standards Framework
Manufacturing and deployment of optical-electrical composite cables are governed by a comprehensive standards ecosystem:
IEC 60794-1 — Optical fiber cable general specification
IEC 60502 — Power cables with extruded insulation
GB/T 9771 — Single-mode optical fiber specification (China)
GB/T 4019 / YD/T 1999 — Chinese standards for optical-electrical composite cables
IEEE 1222 — Testing standard for all-dielectric self-supporting fiber optic cables
TIA/EIA-568 — Structured cabling standards relevant to hybrid indoor cabling
Compliance with regional certification requirements, including CCC (China), UL (United States), and CE (European Union), is essential for commercial deployment.
Future Trends
The optical-electrical composite cable market continues to evolve alongside broader infrastructure trends. The proliferation of AI-driven edge computing, massive IoT sensor networks, and the expansion of 5G-Advanced networks are driving demand for higher fiber counts, higher voltage ratings, and more compact cable geometries. Emerging developments include micro-module fiber technology that reduces cable diameter, recyclable and environmentally friendly jacket materials, and intelligent cables embedded with distributed fiber sensing for real-time structural health monitoring. These innovations position the optical-electrical composite cable as a pivotal element in the global convergence of power and communications infrastructure for decades to come.
Conclusion
Optical-electrical composite cable represents a paradigm shift in how communication and power infrastructure is designed and deployed. By uniting optical fiber and electrical conductors in a single, ruggedized assembly, it delivers measurable benefits in installation efficiency, capital expenditure, operational reliability, and deployment speed. From FTTH access networks and 5G radio sites to smart grids and industrial automation, the optical-electrical composite cable has become an essential enabling technology for the digital era, bridging the physical gap between the power grid and the information network.
