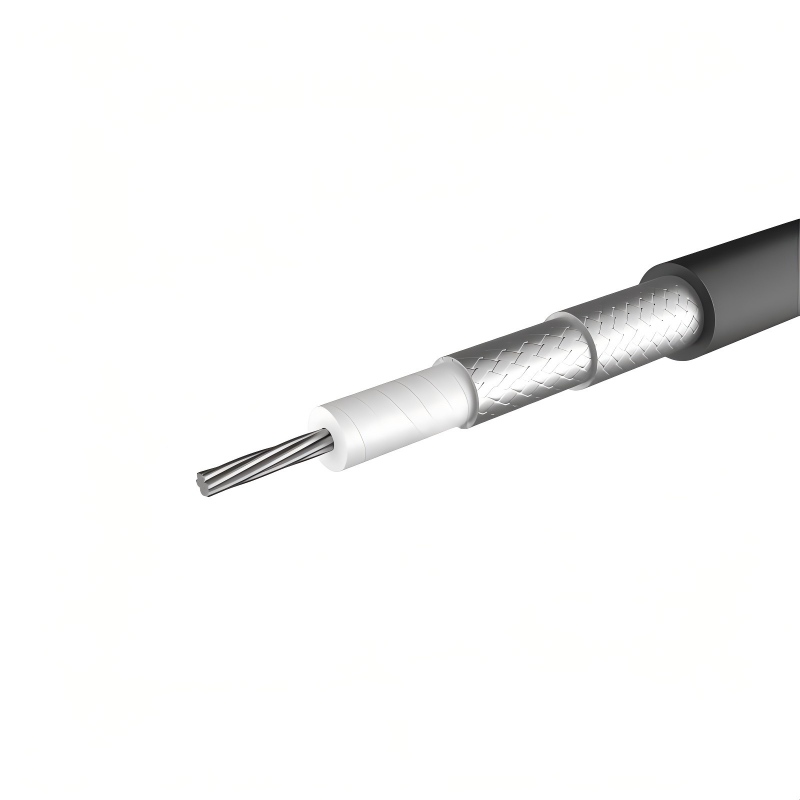

Rays Coaxial Cable-Equivalent to GORE 3449 GORE 3450
Product Introduction：
Replace GORE CXN3506 cable.
Wide frequency band, low attenuation.
Excellent wear resistance and high bending flexibility.
Professional solutions for RF cables and assemblies.
Attenuation Characteristics:
Item | Frequency | Parameter | |
| 3449 | 3450 | ||
Attenuation(20℃, nom, dB/M) | 2 GHz | 0.34 | 0.22 |
4 GHz | 0.49 | 0.31 | |
6 GHz | 0.60 | 0.38 | |
8 GHz | 0.70 | 0.44 | |
10 GHz | 0.78 | 0.50 | |
| 12 GHz | 0.86 | 0.55 | |
| 14 GHz | 0.93 | 0.6 | |
| 16 GHz | 1.00 | 0.64 | |
18 GHz | 10.6 | 0.68 | |
| 26.5GHz | 1.55 | ||
VSWR | DC–6.0 GHz | 1.15 | 1.15 |
DC–18.0 GHz | 1.25 | 1.25 | |

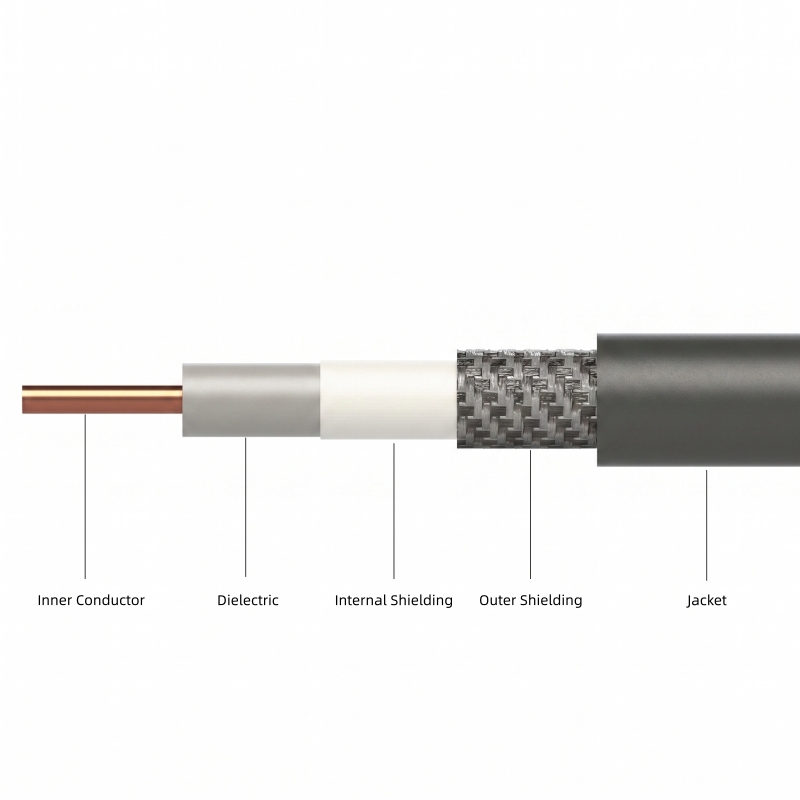

Structural Parameters：
| Parameter | 3449 | 3450 |
|---|---|---|
| Impedance | 50 Ω | 50 Ω |
| Inner Conductor | Silver-plated Cu, 1.40 (solid) | Silver-plated Cu, 2.10 (solid) |
| Insulation | ePTFE | ePTFE |
| Shielding | Double Silver-Plated Copper Braid, >90 dB | Triple / Double Silver-Plated Copper Braid, >90~110 dB |
| Outer Diameter | 4.8 mm | 7.5mm |
| Weight | 68 kg/km | 148kg/km |
| Minimum Bend Radius | 25 mm (More Flexible) | 33 mm |
| Temperature Range | -55°C ~ +150°C | -55°C ~ +200°C |
