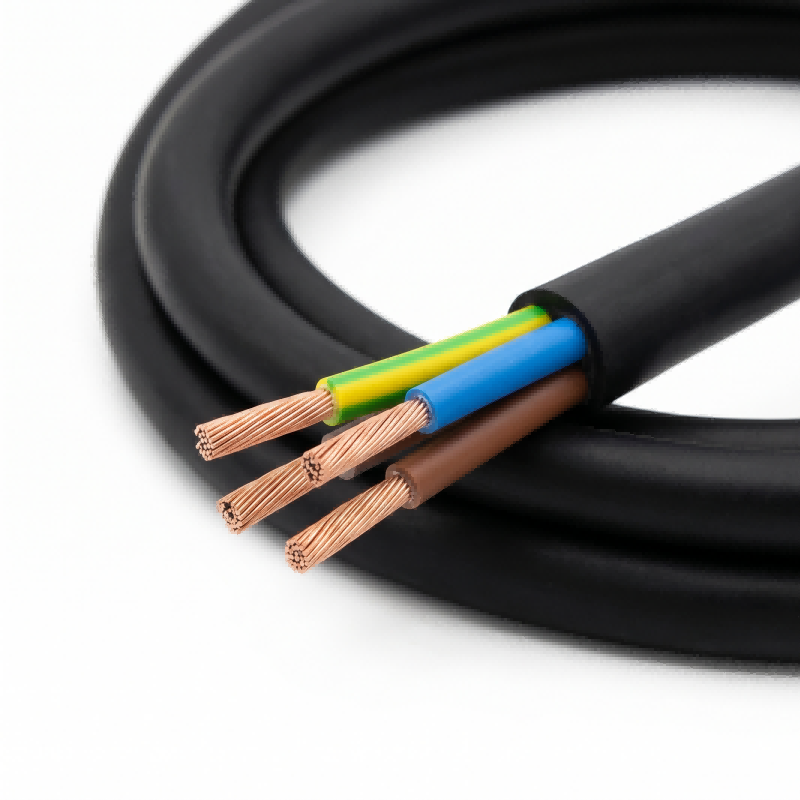

Rays Instrumentation Cable-flexible power cable
Product Introduction：
Rays Instrumentation Flexible Power Cable, with the internal designation of QXRT series, is divided into power supply cables and control cables.
This cable adopts oil-resistant elastic material for insulation and special wear-resistant elastic material for sheath. It features excellent electrical performance, aging resistance, low temperature resistance down to -45℃, oil resistance, moisture resistance, mildew resistance and acid & alkali resistance. With a flexible structure, the cable is easy for installation.
Product Model:
| Model | Conductor | Insulation layer | Shielding layer | Jacket | Armoring layer |
| QXRT | Copper | Insulating oil-resistant elastomer | - | Wear-resistant elastomer | - |
| QXRTP | Copper | Insulating oil-resistant elastomer | Tinned copper braided shield | Wear-resistant elastomer | - |
| QXRT80 | Copper | Insulating oil-resistant elastomer | Tinned copper braided shield | Wear-resistant elastomer | Tinned copper wire |
Performance Index：
| Product | Parameters |
| Core Number | 1~4 |
| Nominal Cross-sectional Area(mm²) | 1.5~300 |
| Operating Temperature | -45℃~90℃ |
| Rated Voltage | 450V/750V |
| Braid Density | ≤85% |
| Minimum Bend Radius | 5× Cable OD |
More detailed parameters are available by contacting our customer service staff.
