Rays Twinaxial Cable RS 485 Cable
Product Introduction：
The aviation RS 485 data bus cable employs fluoroplastic insulation and sheathing, featuring high- and low-temperature resistance, aging resistance, corrosion resistance, flame retardancy, lightweight, small outer diameter, and excellent mechanical toughness. It ensures stable performance and maintains constant signal propagation speed across a wide frequency range.It is primarily used in aviation electronic systems, AFDX aircraft data networks, and military communication data networks.
This product is a direct replacement for Belden 1813A, MOGAMI W2997 and Alpha Wire 1102 series.
Structural Parameters：
| Specification | Maximum Outer Diameter （mm） | Maximum Weight (g/m) |

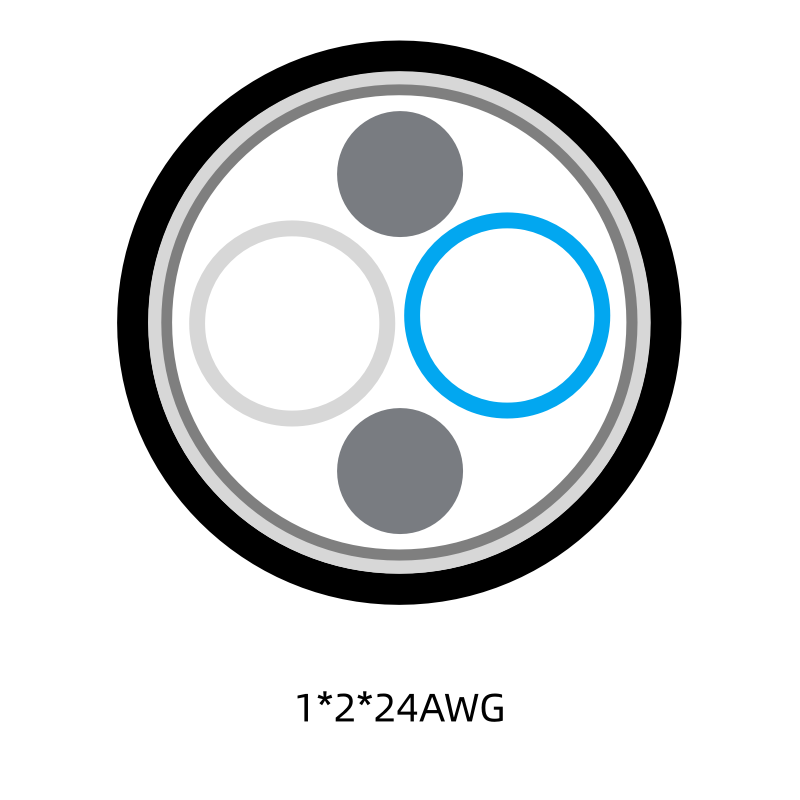

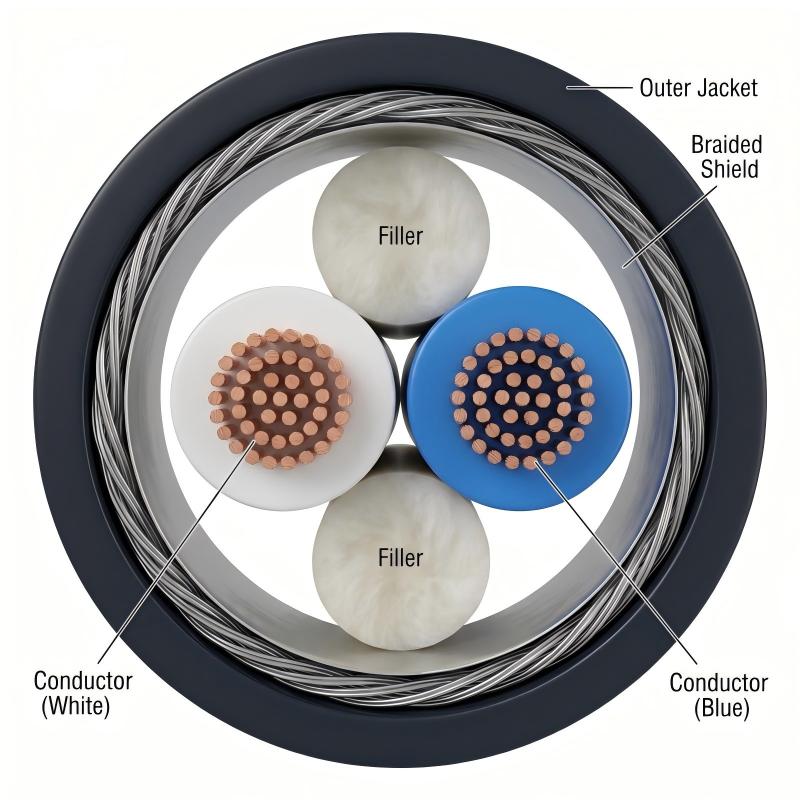

| 1×2×24A | 5.2 | 48 |

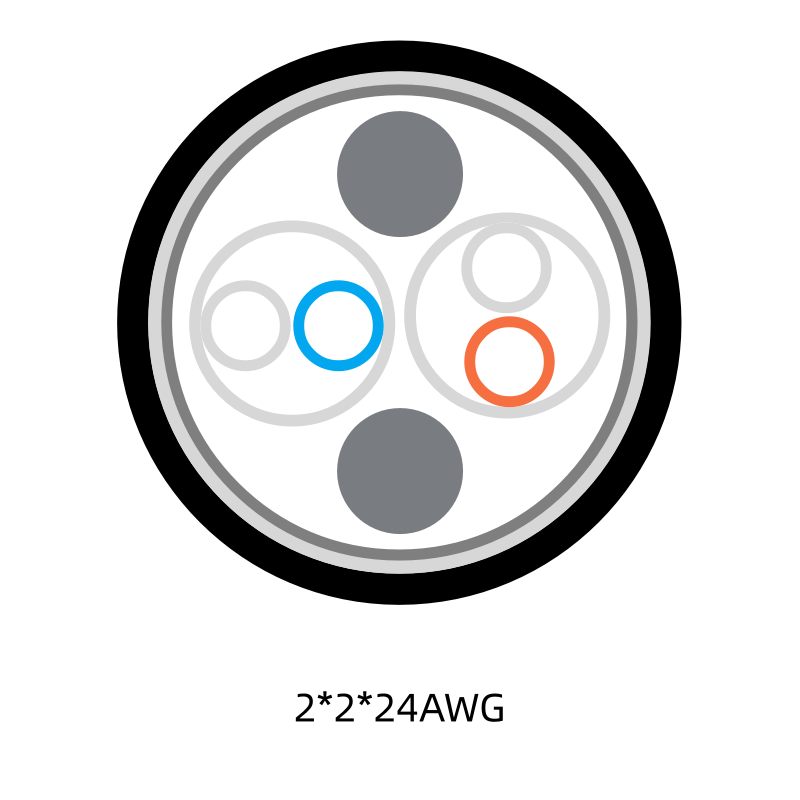

| 2×2×24A | 9.0 | 68 |
Performance Index：
| Product | Parameters |
| Rated Voltage | ≤600V |
| Rated Operating Temperature | -65℃~180℃ |
| Inner DC Resistance (20℃) | ≤9.38Ω100m |
| Unbalance of Inner Conductor DC Resistance | ≤5.0% |
| Withstand Voltage | 2500V/1min |
| Characteristic Impedance | 120±15 Ω |
| Attenuation（100MHz） | ≤26.2dB/100m |
| NEXT Attenuation（100MHz） | ≥40dB |
| Structural Return Loss（100MHz） | ≥20dB |
| Minimum Bending Radius | 8×Cable Outer Diameter |
